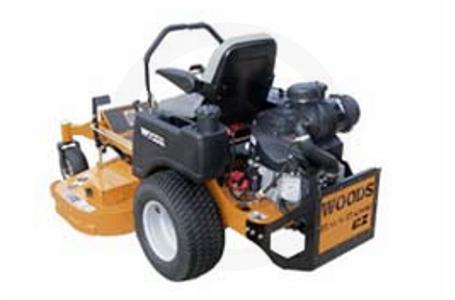

2009 Woods CZ1952K Zero-Turn Mower
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Powerful Kawasaki overhead valve, v-twin cylinder engines with full pressure lubrication and spin-on oil filters
  • Canister style dual element air filter systems
  • Twin fuel tanks offer total 8.5 gallon capacity; cup holder and storage area
  • Wide mouth, tall filler necks reduce spills; retained fuel caps
  • Smooth, quiet, and responsive commercial rated ZT-2800 Hydro-Gear® drive system
  • Dynamic braking from hydro; integrated internal wet parking brake
  • Maintenance free battery
  • Digital hour meter lets you keep track of engine maintenance intervals
  • Deck sizes from 36 in.to 52 in.width for commercial or residential use
  • Easy to maneuver and mow close to objects
  • Low center-of-gravity for better traction and control on hills
  • Easily adjustable 1.5 - 5-inch cutting height; includes quick lift foot pedal
  • Bolt-on front caster arms offer easy replacement in event of damage
  • Extra heavy-duty decks with 7-gauge skirts and 7-gauge or 10 gauge top plates with 7-gauge reinforcements - include heavy welded bumper on skirts
  • Anti-scalp rollers standard on 48 in.and 52 in.decks
  • Quick deck lift pedal lists deck easily to change cutting height or for on-the-go ease of jumping curbs and obstacles
  • Rubber discharge chute helps prevent damage to trees, buildings, fences, etc. (below left)
  • 12-volt power outlet allows use of tools in remote areas or simply keep your cell phone charged (above)
  • Footrest is angled for optimal comfort and easy to remove for belt and pulley access on deck
  • Comfortable, high-back seat with armrests standard; full suspension seat optional
  • Warranty: commercial 2-year/2000 hour or 5-year/500 hour, your choice (Engines warranted by their respective manufacturers)
Engine
  • Model: Kawasaki KAI 585cc V-twin, OHV
  • Air Filter: Canister Style Dual Filter
  • HP/Cooling/Fuel: 19 hp / air-cooled / gas
  • Fuel Capacity: 8.5 gal.
  • Lubrication: Full pressure with spin-on oil filter
Deck
  • Size: 52 in.
  • Top Plate Design: 10-gauge top plate with 10-gauge doubler plate
  • Anti-Scalp Rollers: Front deck corners and center
  • Spindle Type: Top mounted, 7 in. diameter, maintenance free, 1 in. shaft, 6 bolt collar, split steel pulleys
  • Bearings: double sealed, precision ground ball bearings
  • Cutting Height: 1.5 in. - 5 in.
  • Lift Type: Spring assisted manual with quick lift foot pedal
  • Drive: Warner electric clutch (125 ft. lbs.), single drive belt
  • Blade Tip Speed: 18,404 fpm
Tractor
  • Product Weight: 840 lbs.
  • Frame Construction: Welded and formed 10-gauge steel with tubular deck cradle
Drive
  • Transmission: Dual Hydro-Gear ZT-2800 commercial duty hydrostatic drive transaxle with variable displacement pumps
  • Steering: Twin, adjustable control levers, fully dampened for smooth operation
  • Ground Speed: 8 mph foward - 3.5 mph reverse
Tires
  • Front Tires: 11 x 4.0 - 5, 4-ply
  • Rear Tires: 20 x 8.0 - 12
  • Parking Brake: Internal integrated wet disc
  • Seat: Cushioned high-back, adjustable, with armrests; comfort suspension (except CZ1942K)
Other
  • Standard Features: Digital Hourmeter, 12 volt power outlet, cup holder and storage area, wide & tall reduced spill fuel necks and caps, sealed-maintenance-free battery, replaceable front caster arms, long lasting powder coat paint, yellow dichromate plated hardware for reduced rust, convenient control panel, large rear bumper, flexible rubber discharge chute
  • Options: Full suspension seat, ROPS, rear grass collections system, side baggers, mulch kits
  • Warranty (Commercial): Complete mower: 2 years/2000 hours or 5 years/500 hours, your choice - Engines warranted by their respective manufacturers

Specifications

Engine
Engine Manufacturer Kawasaki
Horse Power 19 hp
Engine Type V-twin, OHV; air-cooled; gas
Displacement 585 cc
General
Transmission Dual Hydro-Gear ZT-2800 commercial duty hydrostatic drive transaxle with variable displacement pumps
Wheel Size Front Tires: 11 x 4.0 - 5, 4-ply; Rear Tires: 20 x 8.0 - 10
Fuel Capacity 8.5 gallons
Deck
Deck Size 52 in.
Discharge Type Side

Compare Models

 Print








Year 2009
Manufacturer Woods
Model CZ1952K Zero-Turn Mower
Style Riding
Deck
Deck Size 52 in.
Discharge Type Side
Engine
Engine Manufacturer Kawasaki
Horse Power 19 hp
Engine Type V-twin, OHV; air-cooled; gas
Displacement 585 cc
General
Transmission Dual Hydro-Gear ZT-2800 commercial duty hydrostatic drive transaxle with variable displacement pumps
Wheel Size Front Tires: 11 x 4.0 - 5, 4-ply; Rear Tires: 20 x 8.0 - 10
Fuel Capacity 8.5 gallons
